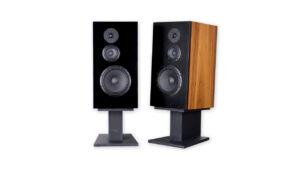

Classic Vintage Style 3-Way Speaker – BUILD PLAN
*NOTE: The Punktkilde drivers are ONLY available from Soundimports.eu in Europe, and are in limited supply. Before purchasing the BUILD PLANS, make sure that the drivers are still in stock in the quantity you will require. See the links below in the description.
Build these high-end 3-Way Vintage Style Speakers that will go all the way down into the mid-twenties in room and extend to beyond 20000Hz by downloading this detailed 27 page plan that will show you how to go about it. The plans provide you with detailed step-by-step instructions and a list and links to tools, parts and materials that you will need. This Build Plan is intended for the intermediate builder or above, but can also be taken on by a beginner builder willing to take the time to learn.
*Build plan dimensions are given in millimetres.
Description
Description
With the increasing popularity lately of the classic vintage styled large box format loudspeakers from manufacturers such as Wharfedale, KLH, PSB and others, I have set out to design and build my own version.
It is a typical 3-way design with a tweeter, 4 inch mid-range and 8 inch woofer. The dimensions are roughly 600mm high, 300mm wide, and just short of 400mm deep.
The result is a high-end loudspeaker that has loads of detail and balance across the frequency range. Despite the wide baffle, the sound stage and imaging is still top notch, and when positioned right, they will still disappear into the background.
This is a high-end loudspeaker, and building the cabinet will require some intermediate to advanced woodworking skills.
When following this build plan, the end result should give you speakers that will have the following approximate specifications:
Drive Units:
- Tweeter: Fountek NeoCD3.0 Ribbon Tweeter
- Mid-Woofer: Punktkilde AUGWL0010-JN10 Mid-Woofer
- Woofer: Punktkilde AUGWL0020-JN03 Woofer
Enclosure Description:
- Bass: Bass Reflex Enclosure
- Mid-range: Sealed Enclosure
Frequency Response:
- -3dB at 32Hz and ±1dB up to 5500Hz on reference axis, with a rise in output from 5500Hz to 20000Hz (not audible)
Sensitivity:
- Approximately 88dB
Impedance:
- 4 Ohm (Nominal), drops to 2.9 Ohm briefly between 1000Hz and 2200Hz
Recommended Amplifier Power:
- At least 20W per channel into 4 Ohms
Approximate Dimensions:
- (W x H x D): 310 mm x 600 mm x 390 mm
