Classic Vintage Style 3-Way Speaker V2 – BUILD PLAN
$49.95
Build these high-end 3-Way Vintage Style Speakers that will go all the way down into the mid-twenties in room and extend to beyond 20000Hz by downloading this detailed 26 page plan that will show you how to go about it. The plans provide you with detailed step-by-step instructions and a list and links to tools, parts and materials that you will need. This Build Plan is intended for the intermediate builder or above, but can also be taken on by a beginner builder willing to take the time to learn.
*Build plan dimensions are given in millimetres.
Description
Description
This is an updated build (V2) to the previous 3-Way Vintage Style Speaker Build, with new drivers and build plans.
With the increasing popularity lately of the classic vintage styled large box format loudspeakers from manufacturers such as Wharfedale, KLH, PSB and others, I have set out to design and build my own version.

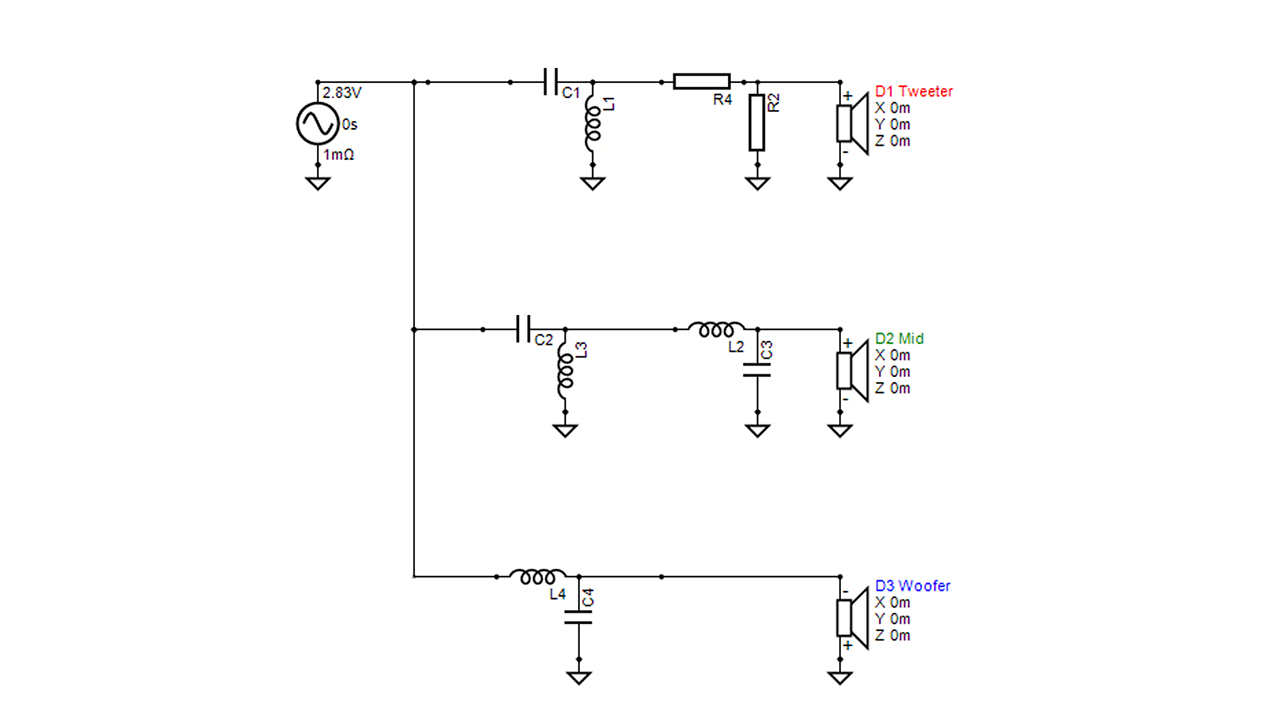

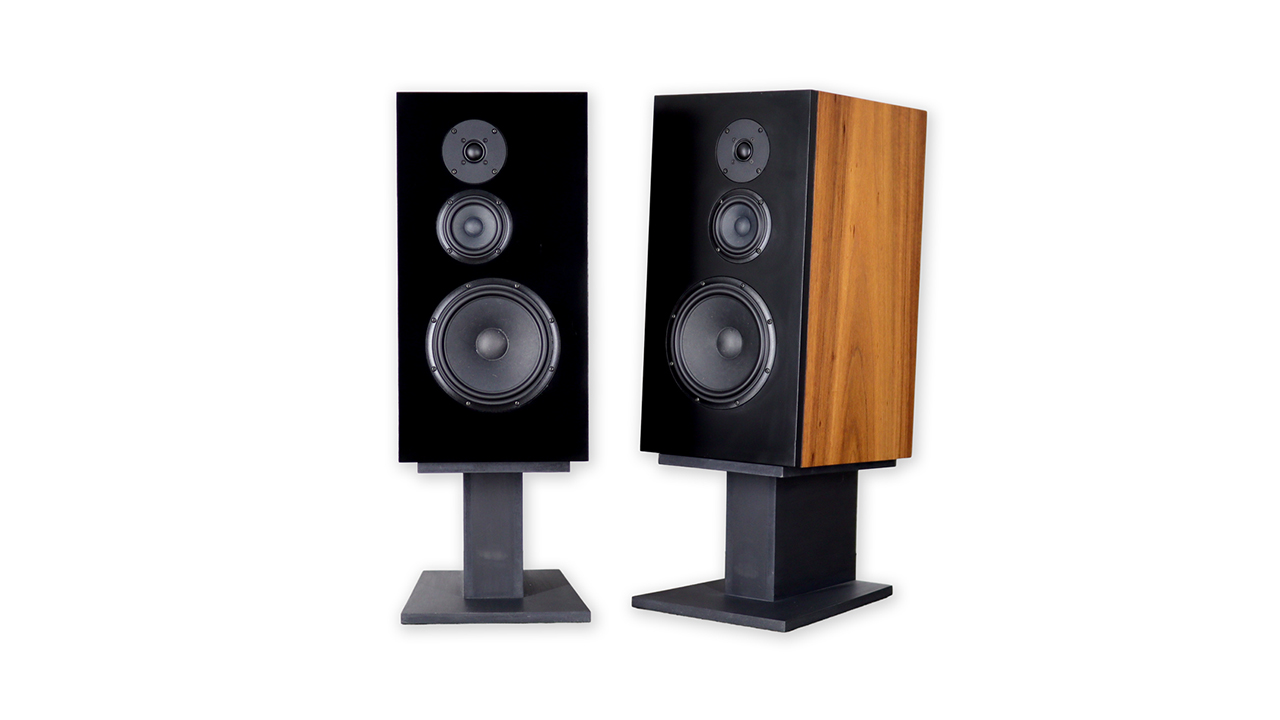

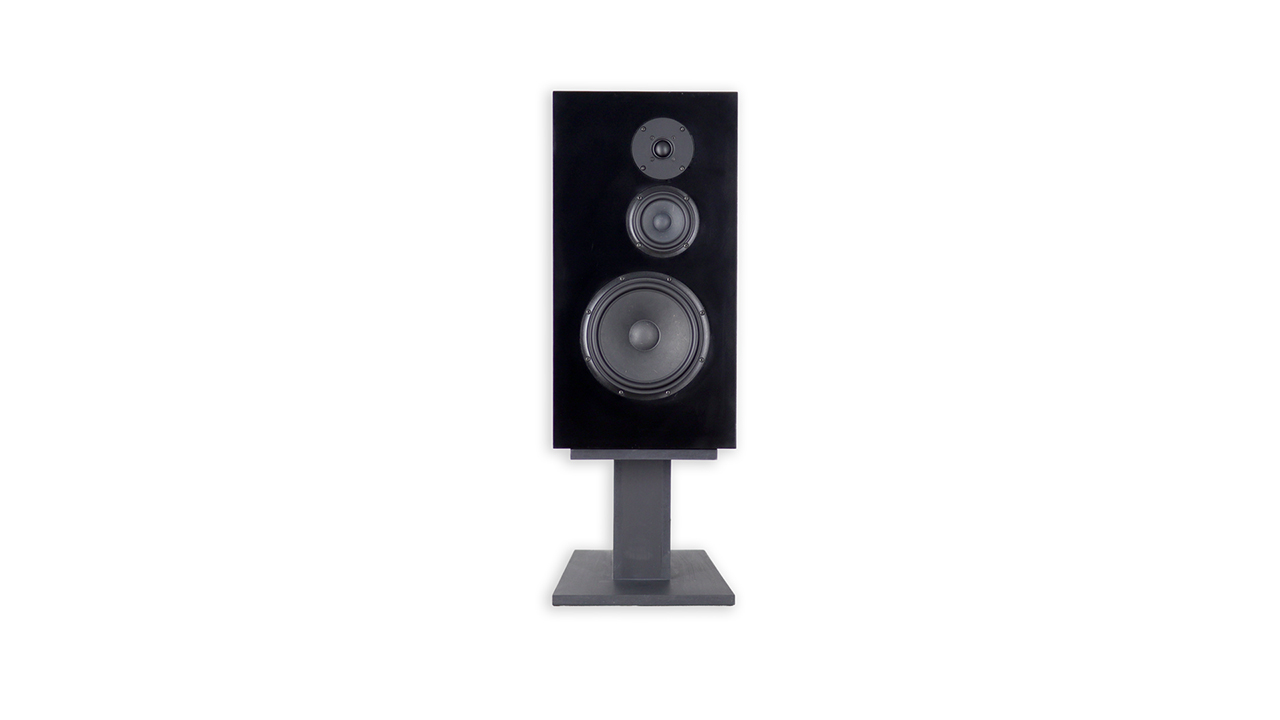

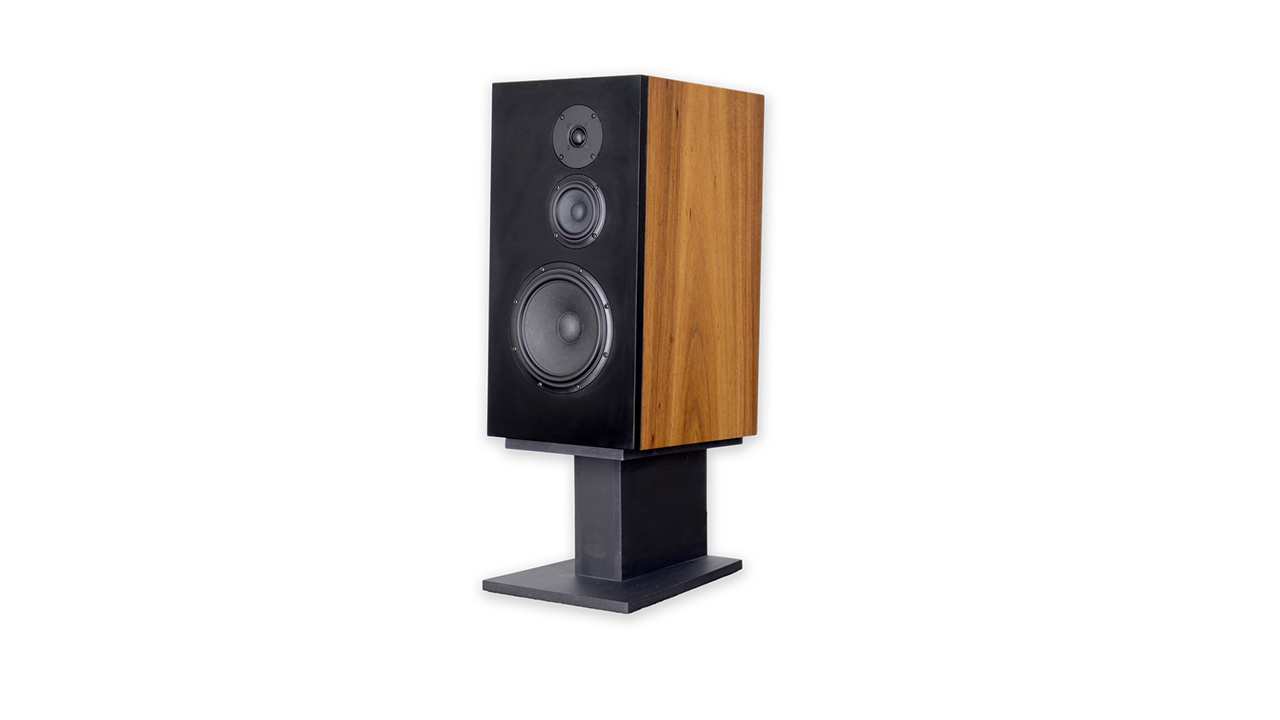

It is a typical 3-way design with a tweeter, 4 inch mid-range and 8 inch woofer. The dimensions are approximately 600mm high, 310mm wide, and 374mm deep.
The result is a high-end loudspeaker that has loads of detail and balance across the frequency range. Despite the wide baffle, the sound stage and imaging is still top notch, and when positioned right, they will still disappear into the background.
This is a high-end loudspeaker, and building the cabinet will require some intermediate to advanced woodworking skills.
When following this build plan, the end result should give you speakers that will have the following approximate specifications:
Drive Units:
- Tweeter: SEAS 27TFFC Tweeters – (US) https://tinyurl.com/3r4vrzvh, (EU) https://tinyurl.com/4nxjnzv2
- Mid-Woofer: SB Acoustics SB12PFCR25-08, 4” Mid-range – (US) https://tinyurl.com/yyb2snwb, (EU) https://tinyurl.com/22y5xvk7
- Woofer: SB Acoustics SB20PFCR30-8, 8” Woofer – (US) https://tinyurl.com/5n8ejsnv, (EU) https://tinyurl.com/26txwera
Enclosure Description:
- Bass: Bass Reflex Enclosure
- Mid-range: Sealed Enclosure

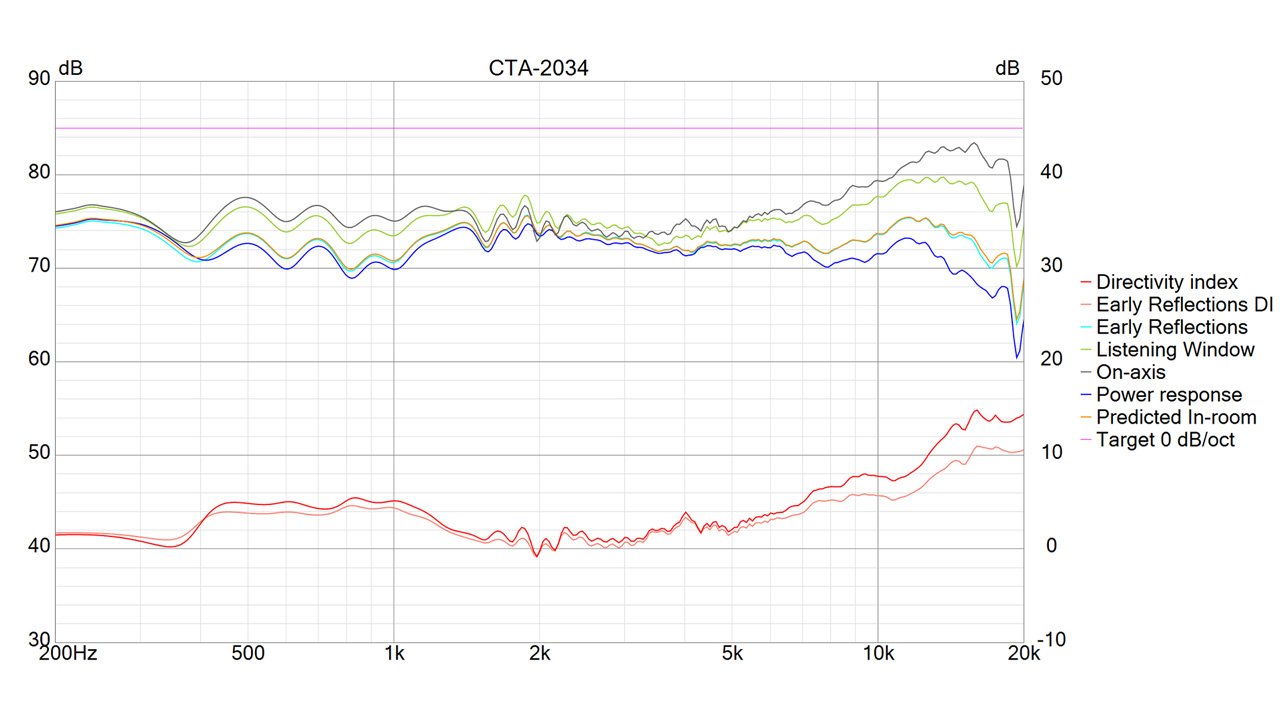

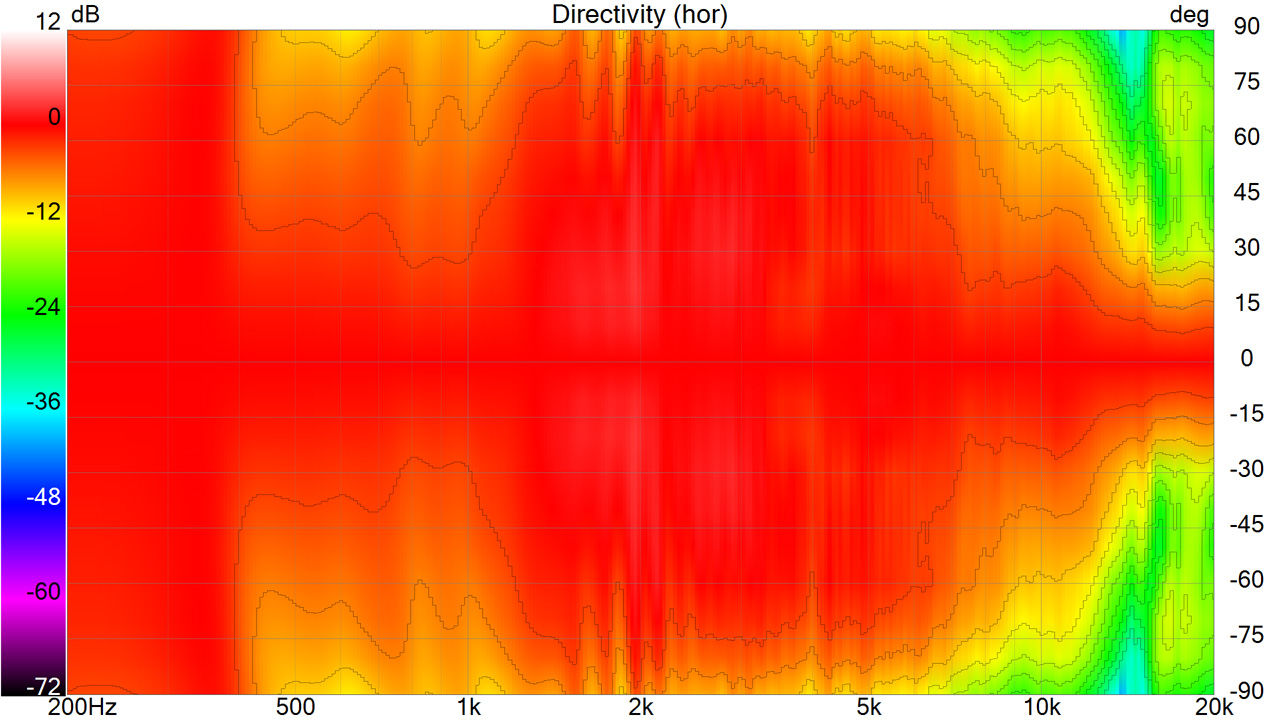

Frequency Response:

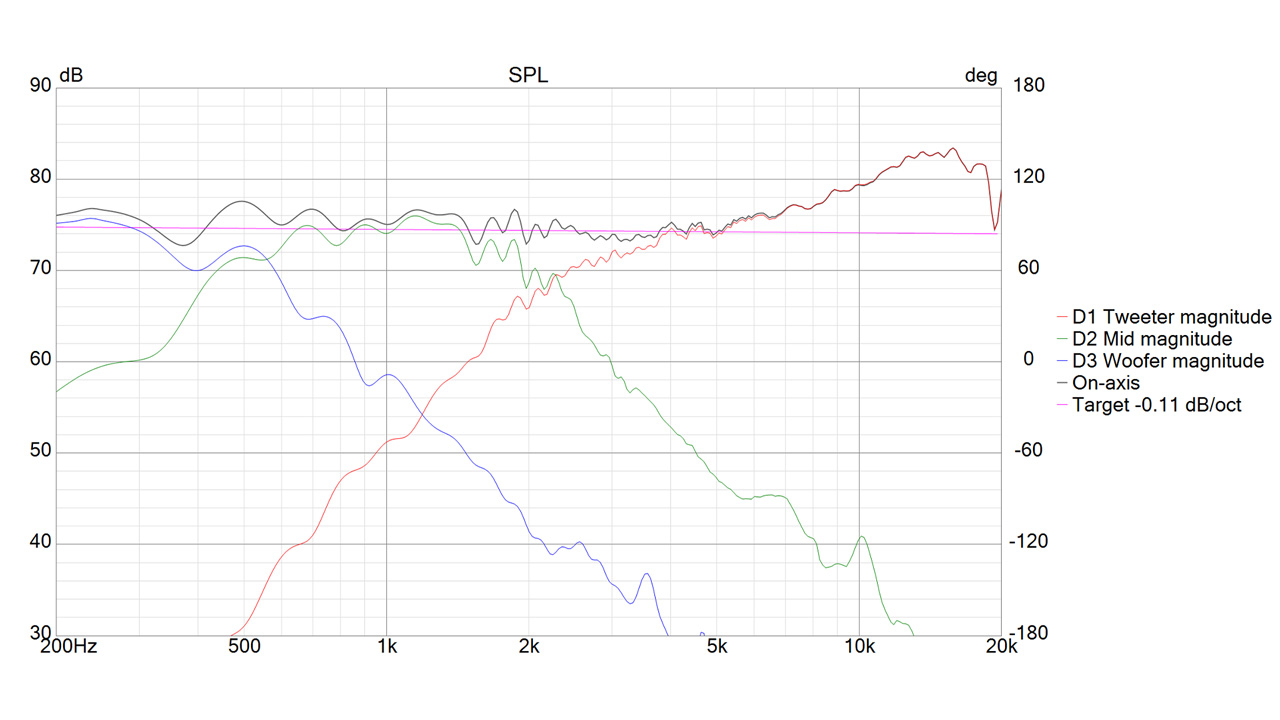

- -3dB at 30Hz and ±2dB up to 5000Hz on reference axis, with a rise in output from 5000Hz to 20000Hz (not audible)
Sensitivity:
- Approximately 87dB
Impedance:

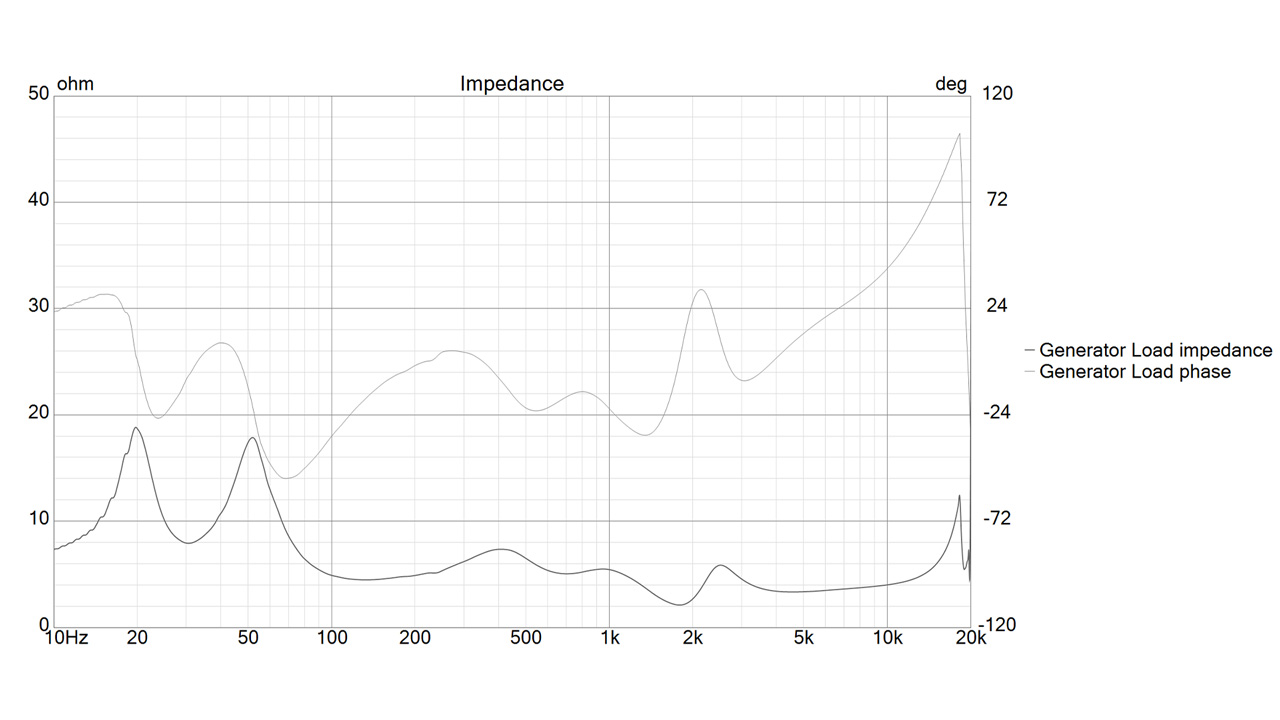

- 4 Ohm (Nominal), drops to 2.5 Ohm briefly at +-1700Hz
Recommended Amplifier Power:
- At 50W – 200W per channel into 4 Ohms
Approximate Dimensions:
- (W x H x D): 310 mm x 600 mm x 374 mm
